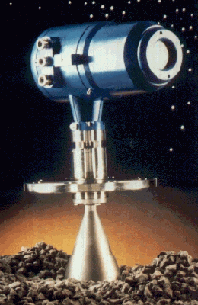

BM70 Level Radar

Level measurement for industrial applications on liquids and solids.

Key features

Non-contact level measurement
Compact with local display
Not influenced by tank atmospheres
Simple to install and easy to use
Converter is interchangeable without process interruption
Intelligent dataprocessing/Smart interface
PC based analysis program

Technical data

Measuring principle: 10 GHz FMCW-radar
Measuring range: to 115 ft (35 m)
Temperature at flange: -22°F - +482°F(-30 °C - +250 °C)
Pressure: Vacuum ... 928 psig (64 bar) higher on request.
Connection size: 2" - 8" (DN 50 .-. DN 200)
Power supply: 24 V DC/AC or 100-240 V AC
