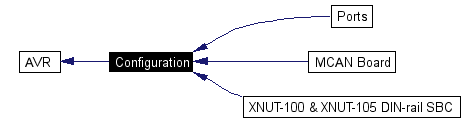

Collaboration diagram for Configuration:
|
|
Files | |
| file | avr.h |
| AVR hardware configuration. | |
Modules | |
| Ports | |
| Assigned port bits. | |
| MCAN Board | |
| Microcontroller Board with CAN Bus. | |
| XNUT-100 & XNUT-105 DIN-rail SBC | |
| DIN-rail mounted Single Board Computer in enclosure with 2 x RS-232, 2 x RS-485, 1 x RS-422 interfaces (software configurable), CAN port (XNUT-105) and 10-30 V (24 V) switch mode power supply. The XNUT-100 and XNUT-105 modules have been specifically designed for industrial communication tasks such as Monitoring & Controlling serial devices, gathering sensor data, Gateway Applications and Protocol Conversion. | |
Defines | |
| #define | AVRPORTA 1 |
| #define | AVRPORTB 2 |
| #define | AVRPORTC 3 |
| #define | AVRPORTD 4 |
| #define | AVRPORTE 5 |
| #define | AVRPORTF 6 |
| #define | AVRPORTG 7 |
