DM9000E Registers
[Davicom DM9000E]

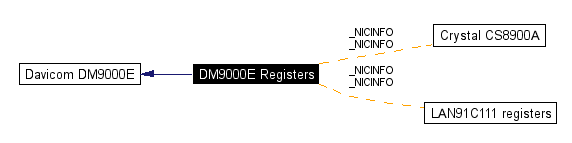

Collaboration diagram for DM9000E Registers:

Detailed Description

Data Structures

struct _NICINFO

Network interface controller information structure. More...

Defines

#define NIC_NCR   0x00

#define NIC_NCR_LBM   0x06

#define NIC_NCR_LBNORM   0x00

#define NIC_NCR_LBMAC   0x02

#define NIC_NCR_LBPHY   0x04

#define NIC_NCR_RST   0x01

#define NIC_NSR   0x01

#define NIC_NSR_SPEED   0x80

#define NIC_NSR_LINKST   0x40

#define NIC_NSR_WAKEST   0x20

#define NIC_NSR_TX2END   0x08

#define NIC_NSR_TX1END   0x04

#define NIC_NSR_RXOV   0x02

#define NIC_TCR   0x02

#define NIC_TCR_TXREQ   0x01

#define NIC_TSR1   0x03

#define NIC_TSR2   0x04

#define NIC_RCR   0x05

#define NIC_RCR_DIS_LONG   0x20

#define NIC_RCR_DIS_CRC   0x10

#define NIC_RCR_PRMSC   0x02

#define NIC_RCR_RXEN   0x01

#define NIC_RSR   0x06

#define NIC_RSR_ERRORS   0xBF

#define NIC_RSR_RF   0x80

#define NIC_RSR_MF   0x40

#define NIC_RSR_LCS   0x20

#define NIC_RSR_RWTO   0x10

#define NIC_RSR_PLE   0x08

#define NIC_RSR_AE   0x04

#define NIC_RSR_CE   0x02

#define NIC_RSR_FOE   0x01

#define NIC_ROCR   0x07

#define NIC_BPTR   0x08

#define NIC_FCTR   0x09

#define NIC_FCR   0x0A

#define NIC_EPCR   0x0B

#define NIC_EPAR   0x0C

#define NIC_EPDRL   0x0D

#define NIC_EPDRH   0x0E

#define NIC_WCR   0x0F

#define NIC_PAR   0x10

#define NIC_MAR   0x16

#define NIC_GPCR   0x1E

#define NIC_GPR   0x1F

#define NIC_TRPA   0x22

#define NIC_RWPA   0x24

#define NIC_VID   0x28

#define NIC_PID   0x2A

#define NIC_CHIPR   0x2C

#define NIC_SMCR   0x2F

#define NIC_MRCMDX   0xF0

#define NIC_MRCMD   0xF2

#define NIC_MRR   0xF4

#define NIC_MWCMDX   0xF6

#define NIC_MWCMD   0xF8

#define NIC_MWR   0xFA

#define NIC_TXPL   0xFC

#define NIC_ISR   0xFE

#define NIC_ISR_IOM   0xC0

#define NIC_ISR_M16   0x00

#define NIC_ISR_M32   0x40

#define NIC_ISR_M8   0x80

#define NIC_ISR_ROOS   0x08

#define NIC_ISR_ROS   0x04

#define NIC_ISR_PTS   0x02

#define NIC_ISR_PRS   0x01

#define NIC_IMR   0xFF

#define NIC_IMR_PAR   0x80

#define NIC_IMR_ROOM   0x08

#define NIC_IMR_ROM   0x04

#define NIC_IMR_PTM   0x02

#define NIC_IMR_PRM   0x01

#define NIC_PHY_BMCR   0x00

#define NIC_PHY_BMSR   0x01

#define NIC_PHY_BMSR_ANCOMPL   0x0020

#define NIC_PHY_BMSR_LINKSTAT   0x0004

#define NIC_PHY_ID1   0x02

#define NIC_PHY_ID2   0x03

#define NIC_PHY_ANAR   0x04

#define NIC_PHY_ANLPAR   0x05

#define NIC_PHY_ANER   0x06

#define NIC_PHY_DSCR   0x10

#define NIC_PHY_DSCSR   0x11

#define NIC_PHY_10BTCSR   0x12

Typedefs

typedef _NICINFO NICINFO

Network interface controller information type.


Data Structures
struct	_NICINFO
	Network interface controller information structure. More...
Defines
#define	NIC_NCR 0x00
#define	NIC_NCR_LBM 0x06
#define	NIC_NCR_LBNORM 0x00
#define	NIC_NCR_LBMAC 0x02
#define	NIC_NCR_LBPHY 0x04
#define	NIC_NCR_RST 0x01
#define	NIC_NSR 0x01
#define	NIC_NSR_SPEED 0x80
#define	NIC_NSR_LINKST 0x40
#define	NIC_NSR_WAKEST 0x20
#define	NIC_NSR_TX2END 0x08
#define	NIC_NSR_TX1END 0x04
#define	NIC_NSR_RXOV 0x02
#define	NIC_TCR 0x02
#define	NIC_TCR_TXREQ 0x01
#define	NIC_TSR1 0x03
#define	NIC_TSR2 0x04
#define	NIC_RCR 0x05
#define	NIC_RCR_DIS_LONG 0x20
#define	NIC_RCR_DIS_CRC 0x10
#define	NIC_RCR_PRMSC 0x02
#define	NIC_RCR_RXEN 0x01
#define	NIC_RSR 0x06
#define	NIC_RSR_ERRORS 0xBF
#define	NIC_RSR_RF 0x80
#define	NIC_RSR_MF 0x40
#define	NIC_RSR_LCS 0x20
#define	NIC_RSR_RWTO 0x10
#define	NIC_RSR_PLE 0x08
#define	NIC_RSR_AE 0x04
#define	NIC_RSR_CE 0x02
#define	NIC_RSR_FOE 0x01
#define	NIC_ROCR 0x07
#define	NIC_BPTR 0x08
#define	NIC_FCTR 0x09
#define	NIC_FCR 0x0A
#define	NIC_EPCR 0x0B
#define	NIC_EPAR 0x0C
#define	NIC_EPDRL 0x0D
#define	NIC_EPDRH 0x0E
#define	NIC_WCR 0x0F
#define	NIC_PAR 0x10
#define	NIC_MAR 0x16
#define	NIC_GPCR 0x1E
#define	NIC_GPR 0x1F
#define	NIC_TRPA 0x22
#define	NIC_RWPA 0x24
#define	NIC_VID 0x28
#define	NIC_PID 0x2A
#define	NIC_CHIPR 0x2C
#define	NIC_SMCR 0x2F
#define	NIC_MRCMDX 0xF0
#define	NIC_MRCMD 0xF2
#define	NIC_MRR 0xF4
#define	NIC_MWCMDX 0xF6
#define	NIC_MWCMD 0xF8
#define	NIC_MWR 0xFA
#define	NIC_TXPL 0xFC
#define	NIC_ISR 0xFE
#define	NIC_ISR_IOM 0xC0
#define	NIC_ISR_M16 0x00
#define	NIC_ISR_M32 0x40
#define	NIC_ISR_M8 0x80
#define	NIC_ISR_ROOS 0x08
#define	NIC_ISR_ROS 0x04
#define	NIC_ISR_PTS 0x02
#define	NIC_ISR_PRS 0x01
#define	NIC_IMR 0xFF
#define	NIC_IMR_PAR 0x80
#define	NIC_IMR_ROOM 0x08
#define	NIC_IMR_ROM 0x04
#define	NIC_IMR_PTM 0x02
#define	NIC_IMR_PRM 0x01
#define	NIC_PHY_BMCR 0x00
#define	NIC_PHY_BMSR 0x01
#define	NIC_PHY_BMSR_ANCOMPL 0x0020
#define	NIC_PHY_BMSR_LINKSTAT 0x0004
#define	NIC_PHY_ID1 0x02
#define	NIC_PHY_ID2 0x03
#define	NIC_PHY_ANAR 0x04
#define	NIC_PHY_ANLPAR 0x05
#define	NIC_PHY_ANER 0x06
#define	NIC_PHY_DSCR 0x10
#define	NIC_PHY_DSCSR 0x11
#define	NIC_PHY_10BTCSR 0x12
Typedefs
typedef _NICINFO	NICINFO
	Network interface controller information type.
