ICC Context Switch
[System Support]

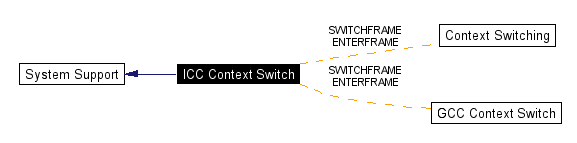

Collaboration diagram for ICC Context Switch:


Detailed Description

Thread context switching for ImageCraft ICCAVR.


Data Structures

struct  SWITCHFRAME
 AVR GCC context switch frame layout. More...
struct  ENTERFRAME
 Thread entry frame layout. More...

Functions

void NutThreadSwitch (void)
 Switch to another thread.
HANDLE NutThreadCreate (u_char *name, void(*fn)(void *), void *arg, size_t stackSize)
 Create a new thread.


Function Documentation

void NutThreadSwitch void   )


Switch to another thread.

Stop the current thread, saving its context. Then start the one with the highest priority, which is ready to run.

Application programs typically do not call this function.

Note:
CPU interrupts must be disabled before calling this function.

HANDLE NutThreadCreate u_char name,
void(*)(void *)  fn,
void *  arg,
size_t  stackSize


Create a new thread.

If the current thread's priority is lower or equal than the default priority (64), then the current thread is stopped and the new one is started.

Parameters:
name String containing the symbolic name of the new thread, up to 8 characters long.
fn The thread's entry point, typically created by the THREAD macro.
arg Argument pointer passed to the new thread.
stackSize Number of bytes of the stack space allocated for the new thread.
Returns:
Pointer to the NUTTHREADINFO structure or 0 to indicate an error.
