PHAT File System
[File System API.]

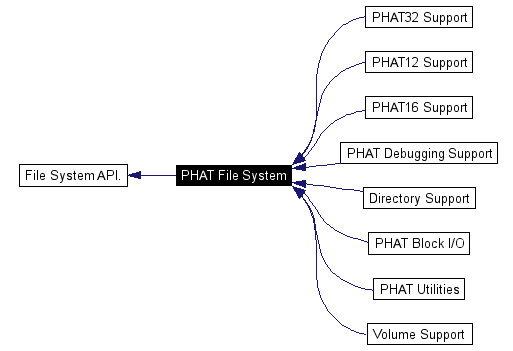

Collaboration diagram for PHAT File System:

---

Detailed Description

FAT12/16/32 compatible file system.

Note:

This is alpha code and may contain severe bugs.

Modules
	Volume Support
	Dealing with volumes.
	Directory Support
	Routines for reading and writing directories.
	PHAT12 Support
	PHAT12 specific routines.
	PHAT16 Support
	PHAT16 specific routines.
	PHAT32 Support
	PHAT32 specific routines.
	PHAT Block I/O
	Reading and writing data blocks.
	PHAT Utilities
	General utility routines used by the PHAT file system.
	PHAT Debugging Support
	Listing various PHAT structures.
Data Structures
struct	_PHATFILE
	PHAT file descriptor structure. More...
File attributes.
#define	PHAT_FATTR_RDONLY   0x01
#define	PHAT_FATTR_HIDDEN   0x02
#define	PHAT_FATTR_SYSTEM   0x04
#define	PHAT_FATTR_VOLID   0x08
#define	PHAT_FATTR_DIR   0x10
#define	PHAT_FATTR_ARCHIV   0x20
#define	PHAT_FATTR_LFN   (PHAT_FATTR_RDONLY | PHAT_FATTR_HIDDEN | PHAT_FATTR_SYSTEM | PHAT_FATTR_VOLID)
#define	PHAT_FATTR_FILEMASK   0x37
Defines
#define	PHATEOC   0x0FFFFFF8
	Marks end of cluster chain.
Typedefs
typedef _PHATFILE	PHATFILE
	PHAT file descriptor structure.
Functions
u_long	AllocFirstCluster (NUTFILE *nfp)
	Allocate the first cluster of a file.
NUTFILE *	PhatFileOpen (NUTDEVICE *dev, CONST char *path, int mode, int acc)
	Open a file.
int	PhatFileClose (NUTFILE *nfp)
	Close a file.
int	PhatFileWrite (NUTFILE *nfp, CONST void *buffer, int len)
	Write data to a file.
int	PhatFileWrite_P (NUTFILE *nfp, PGM_P buffer, int len)
	Write data from program space to a file.
int	PhatFileRead (NUTFILE *nfp, void *buffer, int size)
	Read data from a file.
Variables
NUTDEVICE	devPhat0
	PHAT file system driver information structure.
NUTDEVICE	devPhat1
NUTDEVICE	devPhat0
	PHAT file system driver information structure.
NUTDEVICE	devPhat1

---

Define Documentation

#define PHAT_FATTR_RDONLY   0x01

Read only file.

#define PHAT_FATTR_HIDDEN   0x02

Hidden file.

#define PHAT_FATTR_SYSTEM   0x04

System file.

#define PHAT_FATTR_VOLID   0x08

No file, but a volume label.

#define PHAT_FATTR_DIR   0x10

File contains a subdirectory.

#define PHAT_FATTR_ARCHIV   0x20

File is not archived. This flag will be set when the file is created or modified.

#define PHAT_FATTR_LFN   (PHAT_FATTR_RDONLY | PHAT_FATTR_HIDDEN | PHAT_FATTR_SYSTEM | PHAT_FATTR_VOLID)

Long filename entry.

#define PHAT_FATTR_FILEMASK   0x37

Only these flags are allowed for files and directories.

---

Function Documentation

u_long AllocFirstCluster (  NUTFILE *  nfp  )

Allocate the first cluster of a file. Parameters: nfp  The file for which a cluster is allocated. Returns: Number of the allocated cluster, which is not lower than 2. Any value lower than 2 indicates an error.

NUTFILE * PhatFileOpen (  NUTDEVICE *  dev, CONST char *  path, int  mode, int  acc )

Open a file. This function is called by the low level open routine of the C runtime library, using the _NUTDEVICE::dev_open entry. Parameters: dev  Specifies the file system device. path  Pathname of the file to open. If the last character is a slash, then a directory will be opened. mode  Operation mode. acc  File attribute. Returns: Pointer to a NUTFILE structure if successful or NUTFILE_EOF otherwise.

int PhatFileClose (  NUTFILE *  nfp  )

Close a file. Parameters: nfp  File descriptor. Returns: 0 on success, -1 otherwise.

int PhatFileWrite (  NUTFILE *  nfp, CONST void *  buffer, int  len )

Write data to a file. Parameters: nfp  Pointer to a NUTFILE structure, obtained by a previous call to PnutFileOpen(). buffer  Pointer to the data to be written. If zero, then the output buffer will be flushed. len  Number of bytes to write. Returns: The number of bytes written. A return value of -1 indicates an error.

int PhatFileWrite_P (  NUTFILE *  nfp, PGM_P  buffer, int  len )

Write data from program space to a file. This function is not yet implemented and will always return -1. Similar to PhatFileWrite() except that the data is located in program memory. Parameters: nfp  Pointer to a NUTFILE structure, obtained by a previous call to PnutFileOpen(). buffer  Pointer to the data in program space. If zero, then the output buffer will be flushed. len  Number of bytes to write. Returns: The number of bytes written. A return value of -1 indicates an error.

int PhatFileRead (  NUTFILE *  nfp, void *  buffer, int  size )

Read data from a file. Parameters: nfp  Pointer to a NUTFILE structure, obtained by a previous call to PnutFileOpen(). buffer  Pointer to the data buffer to fill. size  Maximum number of bytes to read. Returns: The number of bytes actually read. A return value of -1 indicates an error.

---

Variable Documentation

NUTDEVICE devPhat0

PHAT file system driver information structure. A pointer to this structure must be passed to NutRegisterDevice() to bind this file system driver to the Nut/OS kernel. An application may then call /verbatim _open("MMC0:1/PHAT0", _O_RDWR | _O_BINARY); /endverbatim to mount partition 1 on the previously registered block device (devMmc0 in this example).

NUTDEVICE devPhat0

Initial value: { 0, {'P', 'H', 'A', 'T', '0', 0, 0, 0, 0} , IFTYP_FS, 0, 0, 0, 0, PhatInit, PhatApiIOCtl, PhatApiFileRead, PhatApiFileWrite, PhatApiFileWrite_P, PhatApiFileOpen, PhatApiFileClose, PhatFileSize } PHAT file system driver information structure. A pointer to this structure must be passed to NutRegisterDevice() to bind this file system driver to the Nut/OS kernel. An application may then call /verbatim _open("MMC0:1/PHAT0", _O_RDWR | _O_BINARY); /endverbatim to mount partition 1 on the previously registered block device (devMmc0 in this example).

NUTDEVICE devPhat1

Initial value: { 0, {'P', 'H', 'A', 'T', '1', 0, 0, 0, 0} , IFTYP_FS, 0, 0, 0, 0, PhatInit, PhatApiIOCtl, PhatApiFileRead, PhatApiFileWrite, PhatApiFileWrite_P, PhatApiFileOpen, PhatApiFileClose, PhatFileSize }

---
